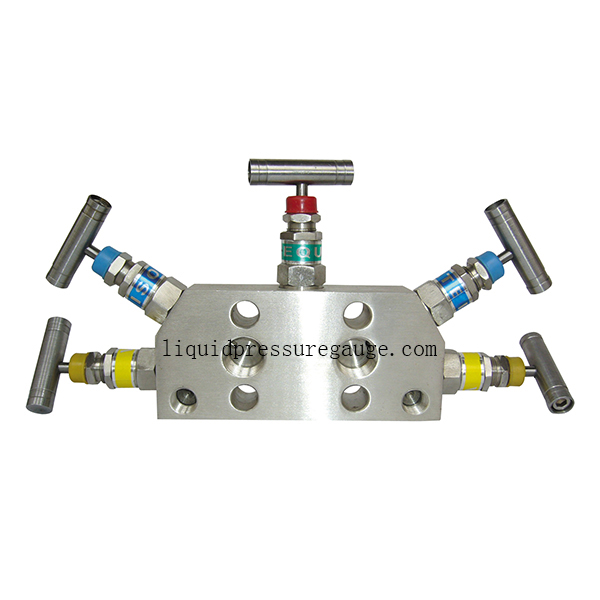

5 Valve 200C 6000 Psi Five Valve Way Manifolds For Differential Pressure Transmitter ODM

Product Categories

Yueqing Jintu Trading Co.,Ltd

Contact Now

Model Number : JT-V-11

Place of Origin : China

MOQ : 100

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 100.000 pcs per month

Delivery Time : 10-30 works day

Product name : Five-valve manifolds

Inlet/process : 1/2 female NPT, BPS, BSPT or made as requestion

Outlet/instrument : Coplanar flange

Test/Vent : 1/4 Female NPT

Material : Stainless steel

Max. working pressure : 6000 psi

Max. working temperature : 200℃

Gasket/Packing : PTFE OR Graphite

Media : oil, gas, water

Contact Now

Instrument manifold, gauge valve, five-valve manifolds, stainless steel, max. working pressure 6000 psi

The size of the center hole 2-1/8" in (54mm) is convenient for the instrument calibrating with flange connection.

Five-valves contains two isolation valves and a balancing valve.and the two went valve, calibration and testing.

Features:

- Material: Stainless steel

- Max. working temperature: 200℃

- Max. working pressure gauge: 6000 psi

- Inlet / process: 1/2 NPT female NPT

- Outlet / instrument: Coplanar flange

- Gasket / packing: PTFE OR Graphite

Material	stainless steel
Max. working temperature	200℃
Max. working pressure	6000 psi
Inlet/process	1/2 female NPT, BPS, BSPT or made as requestion
Outlet/instrument	Coplanar flange
Test/Vent	1/4 Female NPT
Gasket/Packing	PTFE OR Graphite
Seat/seal material	PTFE OR Graphite

5 Valve 200C 6000 Psi Five Valve Way Manifolds For Differential Pressure Transmitter ODM
