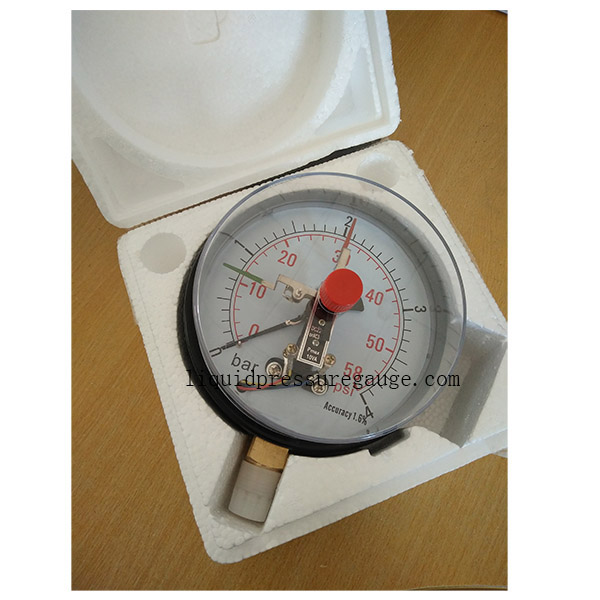

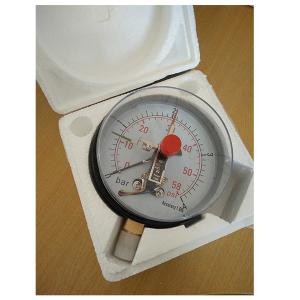

Stainless Steel 1/2 NPT 4in Electric Contact Pressure Gauges 58Psi

Model Number : YXC-100 (0-4 bar)

Place of Origin : China

MOQ : 1000 pcs

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 300,000 pcs per month

Delivery Time : 20-40 work days

Packaging Details : Inner box for each pressure gauge

Product Name : Electric contact Pressure gauge

Size : 2-1/2",4"

Range : 0-58 psi

Accuracy : 1.6%

Connection : 3/8", 1/2" NPT/BSP/BSPT etc.

Case : Black painted steel

Pointer : Black painted

Window : safety glass

Contact Now

4 inch Electric contact Pressure Gauge, 0-4 bar ,Lower Mount, Black painted Steel case and Brass Connection

The gauges is used for measuring pressure of air, gas or liquid which does not corrode copper alloy. The measuring range covers from vacuum to 10,000 psi.

Features:

- Range: 0-4 bar

- 1/2 NPT lower mount

- Steel case

- Brass internal

- PC window

- Dial: 4"

- Opitional:1/2 BSP

Product name	Electric contact pressure gauge
Application	It can be used for measuring pressure of air, gas or liquid which does not corrode copper alloy.
Face dia	2-1/2",4"
Case	black painted steel
Ring	black painted steel
Connetion & socket	brass
Bourdon tube	copper alloy
Pointer and dial	aluminum
Window	safety glass
Range	0-58 psi
Mount	Lower mount
