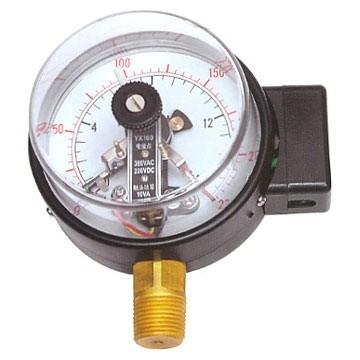

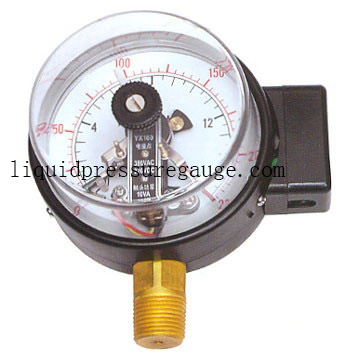

Magnetic 2.5in 16 Bar Electric Contact Pressure Gauges 1/2" BSP

Product Categories

Yueqing Jintu Trading Co.,Ltd

Contact Now

Model Number : YXC-100 (0-16 bar)

Place of Origin : China

MOQ : 1000 pcs

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 300,000 pcs per month

Delivery Time : 20-40 work days

Packaging Details : Inner box for each pressure gauge

Product Name : Electric contact Pressure gauge

Size : 2-1/2",4"

Range : 0-16 bar

Accuracy : 1.6%

Connection : 3/8", 1/2" NPT/BSP/BSPT etc.

Case : Black painted steel

Pointer : Black painted

Window : safety glass

Contact Now

4 inch Electric contact Pressure Gauge, 0-16 bar ,Lower Mount, Black painted Steel case and Brass Connection

Pressure gauges are widely used in petroleum,chemical,food,pipeline etc.The measuring range is 0-16 bar.

Features:

- Range: 0-16 bar

- 1/2 NPT lower mount

- Steel case

- Brass internal

- PC window

- Dial: 4"

- Opitional: 1/2 BSP

Product name	Electric contact pressure gauge
Application	It can be used for measuring pressure of air, gas or liquid which does not corrode copper alloy.
Face dia	2-1/2",4"
Case	black painted steel
Ring	black painted steel
Connetion & socket	brass
Bourdon tube	copper alloy
Pointer and dial	aluminum
Window	safety glass
Range	Vacuum, compound, 0-10,000 psi
Mount	Lower mount

Magnetic 2.5in 16 Bar Electric Contact Pressure Gauges 1/2" BSP
