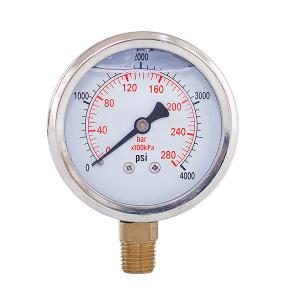

4000Psi 2.5 Inch Dial Dual Scale Liquid Filled Pressure Gauges

Model Number : YN-60 ( 0-4000psi )

Place of Origin : China

MOQ : 1000 pcs

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 400,000 pcs per month

Delivery Time : 20-40 work days

Packaging Details : Inner paper box for each pressure gauge

Product Name : liquid filled Pressure gauge

Connection : 1/4" NPT/BSP/BSPT or made according to customers' request

Liquid filled : glycerine, silicone oil

Mount : Lower mount

Case : Stainless steel

Connetion & socket : Brass

Range : 0-4000 psi

Accuracy : 2.5%

Contact Now

2-1/2 inch Pressure Gauge, glycerine, 0-4000 psi/bar/kpa, 1/4 BSP lower mount, stainless steel case and brass internal

Application:

-Use where harmful vibration and pulsation are present
-Hydraulic equipment, pressure washers,oil field equipment, pumps, compressors and process systems

-Outdoor and severe ambient and process conditions

Features:

- Crimp on bezle

- 2.5" dia

- Lower mount

Product name	Liquid filled pressure gauge
Application	It is used for measuring pressure of air, gas or liquid which does not corrode copper alloy. It can be used for measuring media pressure with vibration or pulsation.
Face dia	2", 2-1/2"
Case	stainless steel
Ring	stainless steel
Connetion & socket:	brass
Movement	brass
Pointer and dial	aluminum
Window	safety glass
Liquid	glycerine, silicone oil
Range	Vacuum, compound, 0-15,000 psi
Mount	Lower mount
Accuracy	±2.5%
Opitional 1	with flange
Opitional 2	U-clamp

4000Psi 2.5 Inch Dial Dual Scale Liquid Filled Pressure Gauges
