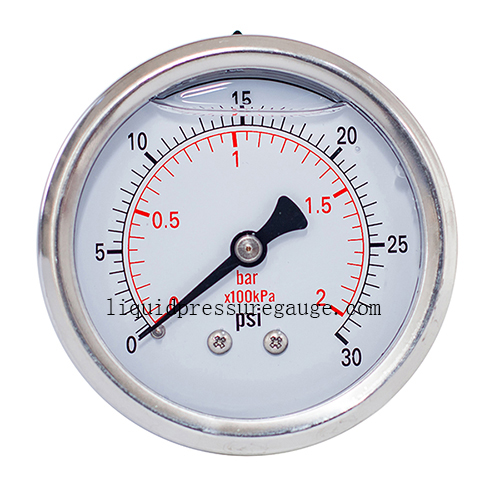

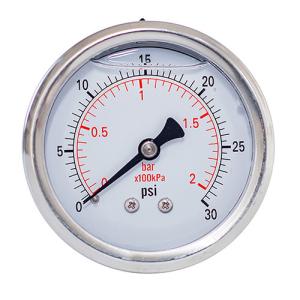

30 PSI Liquid Filled Pressure Gauges, 63mm Class Dial Plate Stainless Steel Case

Model Number : YN-60 Z( 0-30 psi )

Place of Origin : China

MOQ : 1000 pcs

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 400,000 pcs per month

Delivery Time : 20-40 work days

Packaging Details : Inner paper box for each pressure gauge

Product Name : liquid filled Pressure gauge

Connection : 1/4" NPT/BSP/BSPT or made according to customers' request

Liquid filled : glycerine, silicone oil

Mount : Back mount

Case : Stainless steel

Connetion & socket : Brass

Range : 0-30 psi

Accuracy : 2.5%

Contact Now

2-1/2 inch Pressure Gauge, glycerine, 0-30 psi/bar/Kpa, 1/4 BSP back mount, stainless steel case and brass internal

Application:

Suited for use with water,oil,air,gas or other non-corrosive media Liquid filling version for adverse service conditions where pulsation or vibration exists.The range is 0-30 psi.

Feature:

- Range: 0-30 psi

- Double scale: psi/bar

- Filled with glycerine

- Opitional: filled with silicon oil

Product name	Liquid filled pressure gauge
Application	It is used for measuring pressure of air, gas or liquid which does not corrode copper alloy. It can be used for measuring media pressure with vibration or pulsation.
Face dia	2", 2-1/2"
Case	stainless steel
Ring	stainless steel
Connetion & socket:	brass
Movement	brass
Pointer and dial	aluminum
Window	safety glass
Liquid	glycerine, silicone oil
Range	Vacuum, compound, 0-15,000 psi
Mount	Back mount
Accuracy	±2.5%
Opitional 1	with flange
Opitional 2	U-clamp

30 PSI Liquid Filled Pressure Gauges, 63mm Class Dial Plate Stainless Steel Case
