4" 250mbar Capsule Low Pressure Gauge

Place of Origin : China

MOQ : 500 pcs

Price : Negotiable

Payment Terms : T/T, L/C

Delivery Time : 20-40 work days

Packaging Details : Inner paper box for each pressure gauge

Model Number : YE-100(0-250 mbar )

Product Name : Capsule Pressure gauge

Connection : 3/8", 1/2" NPT/BSP/BSPT or made according to customers' request

Mount : Lower mount

Face dial : 4"

Pointer : zero adjustment

Case : Stainless steel

Connetion & socket : Brass

Capsule : copper alloy

Contact Now

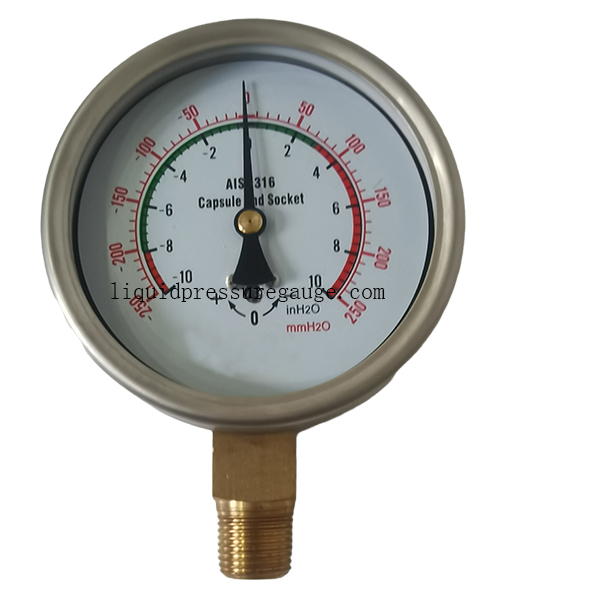

4" Capsule low Pressure Gauge,0-250 mbar ,1/2 NPT lower mount, safety glass, stainless steel case and brass internal

For low pressure measurement in medical, industrial and scientific research applications.Mounting options include centre back, bottom connection and clamp fixing. Both metric and Imperial thread sizes are available.

Features:

- Range: -250-250 IWC

- With zero point adjustment setting

- 1/2 NPT lower mount

- Stainless steel case

- Stainless steel bayonet ring

- PC window

- Brass internal

- Dial: 4"

- Opitional: 1/2 BSP

Product name	Capsule pressure gauge
Application	It is used for measuring micro pressure of air, gas or liquid which does not corrode copper alloy.
Face dia	4"
Case	stainless steel
Connetion & socket	brass
Capsule	copper alloy
Movement	brass
Pointer and dial	aluminum
Window	glass
Range	Vacuum, compound, 0-600 mbar
Mount	lower mounting
Setting	zero adustment setting
Accuracy	±1.6%

4" 250mbar Capsule Low Pressure Gauge
