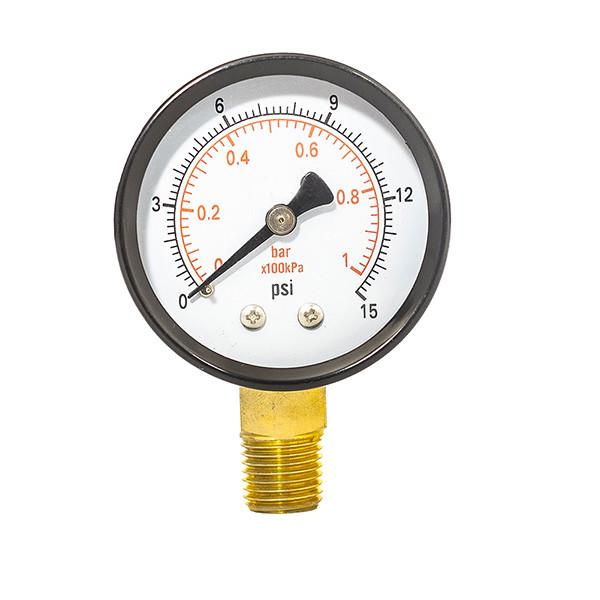

Black Stainless 2" 50mm 15 Psi Water Pressure Gauge 1/8 BSPT

Model Number : Y-50 (0-15 psi)

Place of Origin : China

MOQ : 1000 pcs

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 300,000 pcs per month

Delivery Time : 30-50 work days

Packaging Details : Inner box for each pressure gauge

Product Name : General Pressure gauge

Size : 1-1/2",2", 2-1/2",3"

Range : 0-15 psi

Accuracy : 2.5%

Connection : 1/8", 1/4" NPT/BSP/BSPT or made as request

Case : Black painted steel

Pointer : Black painted aluminum

Window : glass glass

Contact Now

2" General Pressure Gauge,0-15 psi/bar,1/4 NPT Lower Mount, Black painted Steel case and Brass Connection

Application:

The general pressure gauge is suitable for measuring the pressure of the liquid, steam, and gas without explosion hazard, non-crystallizing, non-solidifying, and non-corrosive to copper and copper alloys.The measuring range covers 0-15 psi.

Features:

- Range: 0-1 bar

- 1/4 NPT lower mount

- Steel case

- Brass internal

- Dial: 2"

- Opitional: 2-1/2"

Product name	General pressure gauge
Aplication	It can be used for measuring pressure of air, gas or liquid which does not corrode copper alloy.
Face dia	1-1/2",2",2-1/2", 3"
Case	black painted steel
Ring	black painted steel
Connetion & socket	brass
Bourdon tube	copper alloy
Pointer and dial	aluminum
Window	glass
Range	Vacuum, compound, 0-6000 psi
Mount	lower mount

Black Stainless 2" 50mm 15 Psi Water Pressure Gauge 1/8 BSPT

Product Tags:

2" 50mm Water Pressure Gauges

15Psi Water Pressure Gauges

black stainless pressure gauge 1/8 BSPT

Quality Black Stainless 2" 50mm 15 Psi Water Pressure Gauge 1/8 BSPT wholesale

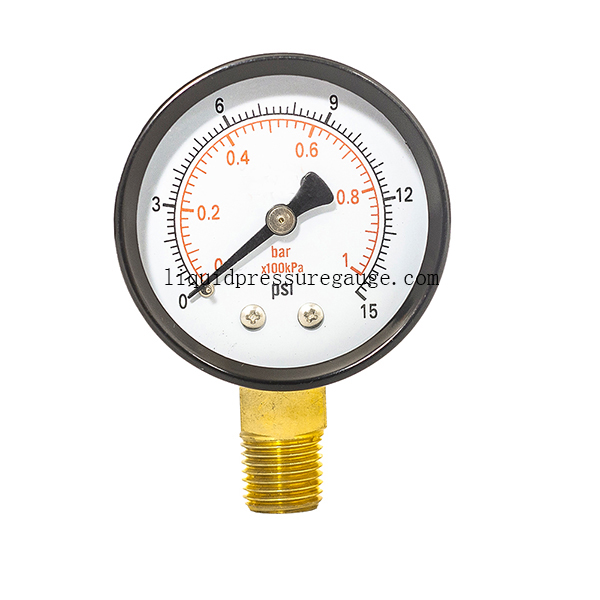

Black Stainless 2" 50mm 15 Psi Water Pressure Gauge 1/8 BSPT Images
