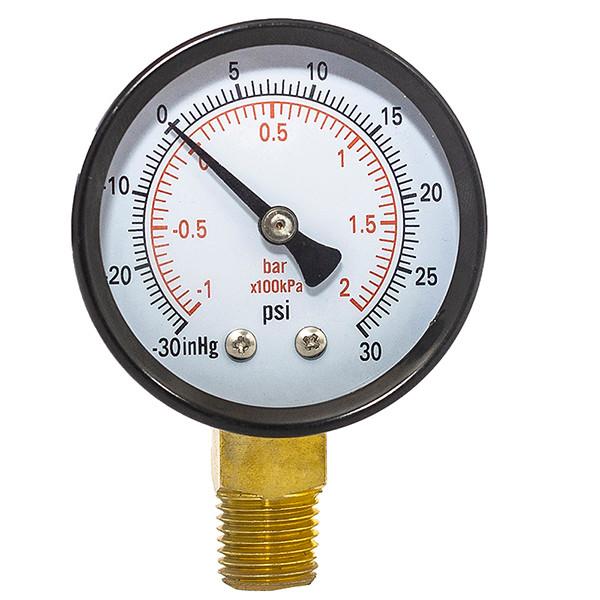

Vaccum 30 Psi 2.5'' 50mm Low Psi Gauge 1/4" NPT Black Painted Steel

Product Categories

Yueqing Jintu Trading Co.,Ltd

Contact Now

Model Number : Y-50 (-30 inHg-30 psi)

Place of Origin : China

MOQ : 1000 pcs

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 300,000 pcs per month

Delivery Time : 30-50 work days

Packaging Details : Inner box for each pressure gauge

Product Name : General Pressure gauge

Size : 1-1/2",2", 2-1/2",3"

Range : -30 inHg-30 psi

Accuracy : 2.5%

Connection : 1/8", 1/4" NPT/BSP/BSPT or made as request

Case : Black painted steel

Pointer : Black painted aluminum

Window : glass glass

Contact Now

2" Vaccum Gauge,-30 inHg-30 psi/bar/Kpa,1/4 NPT Lower Mount, Black painted Steel case and Brass Connection

The gauge is used in Chemical and petrochemical inddustries etc. The measuring range covers -30 inHg-30 psi.

Features:

- Range: -30 inHg-30 psi

- Compound gauge ( vacuum pressure gauge )

- 1/4 NPT lower mount

- Steel case

- Brass internal

- Glass window

- Dial: 2"

- Opitional: lead free brass internal

Product name	General pressure gauge
Aplication	It can be used for measuring pressure of air, gas or liquid which does not corrode copper alloy.
Face dia	1-1/2",2",2-1/2", 3"
Case	black painted steel
Ring	black painted steel
Connetion & socket	brass
Bourdon tube	copper alloy
Pointer and dial	aluminum
Window	glass
Range	Vacuum, compound, 0-6000 psi
Mount	lower mount

Vaccum 30 Psi 2.5'' 50mm Low Psi Gauge 1/4" NPT Black Painted Steel
